Automatic Boot Spring Open

Postby tahiblue » Wed Mar 09, 2011 8:49 pm

Following on from this thread... http://www.babybmw.net/viewtopic.php?f=20&t=18057

* This is for informational purposes only, carry out any work at your own risk.

** I used 25mm Light Load springs with 3/4" tap washers.

*** I only wanted my boot to partially open, use different springs if you want the boot to fully open (http://www.babybmw.net/viewtopic.php?f=20&t=18057&start=85)

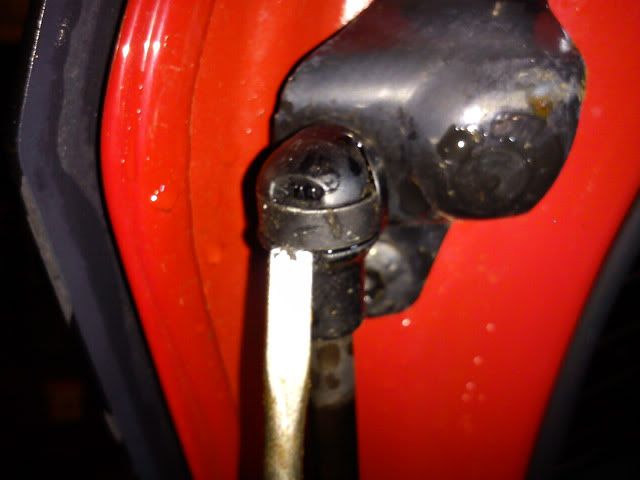

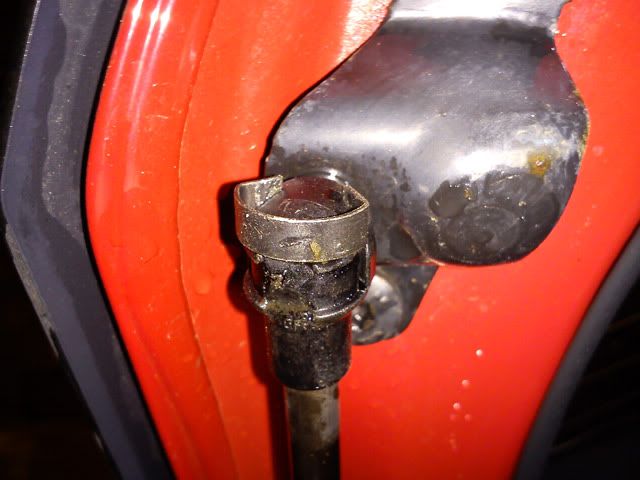

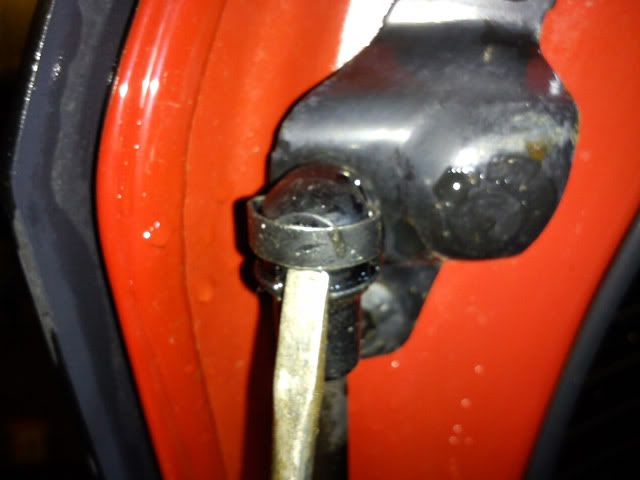

Gently push up on this clip and it slides out the top.



*** PROP UP THE BOOT LID ***

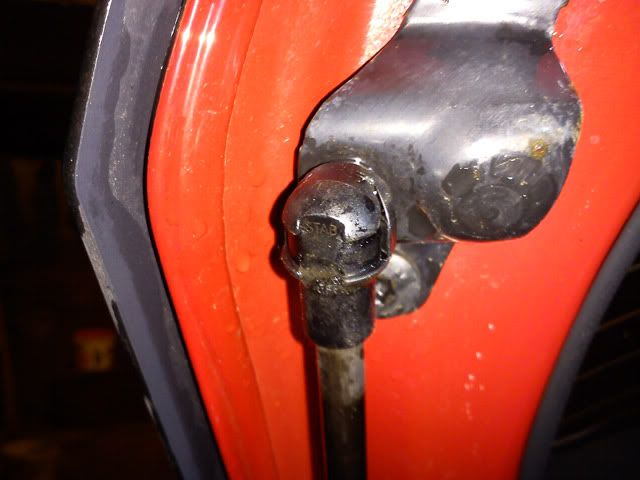

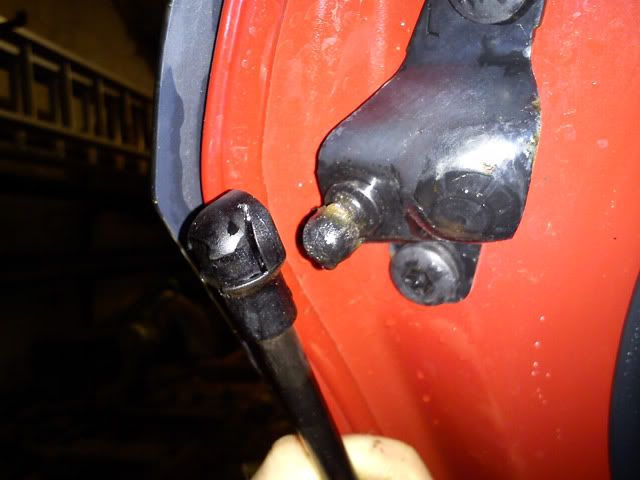

Simply pull the strut towards you and it will pop off the mount

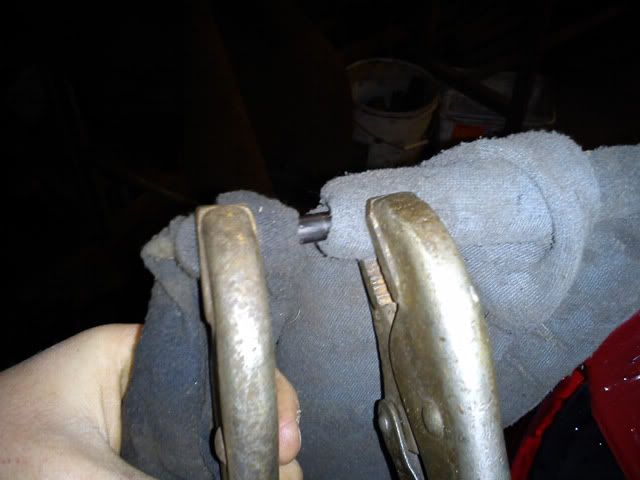

Wrap and clamp both the shaft of the strut and the top. The shaft will need to be clamped tightly (ooh er missus).

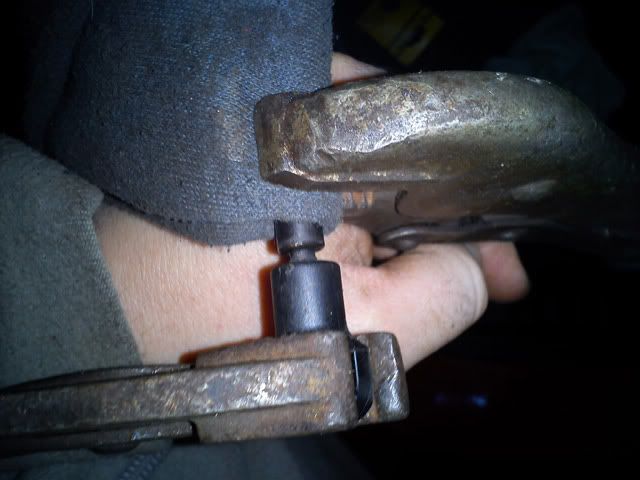

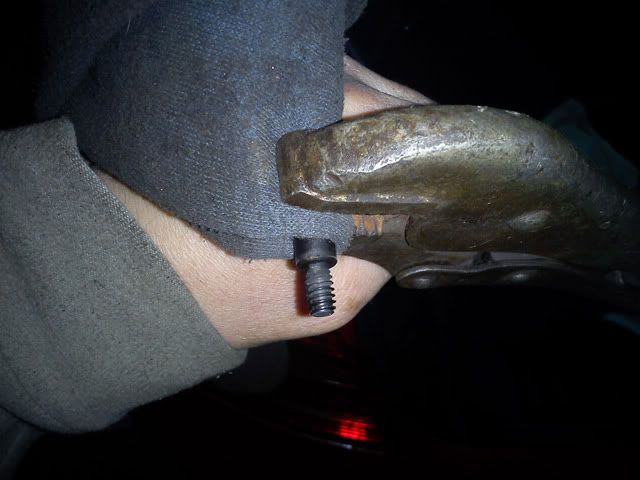

Cloth removed to show you what it is to actually clamp. Turn anti-clockwise on the head to remove.

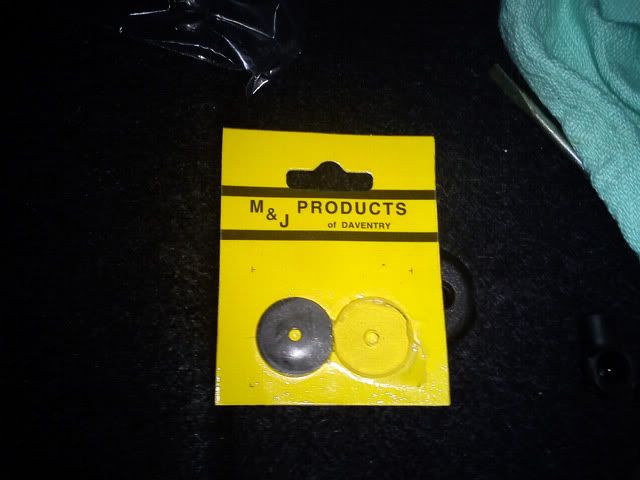

3/4" tap washers. They are a very tight fit!

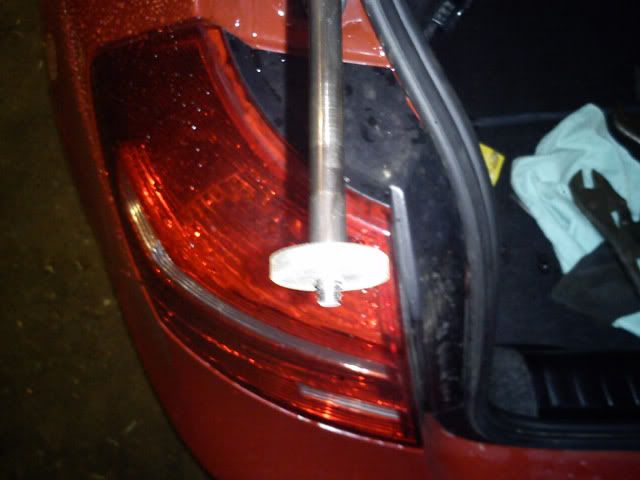

Screw unto the thread.

Then brute force and push unto the shaft.

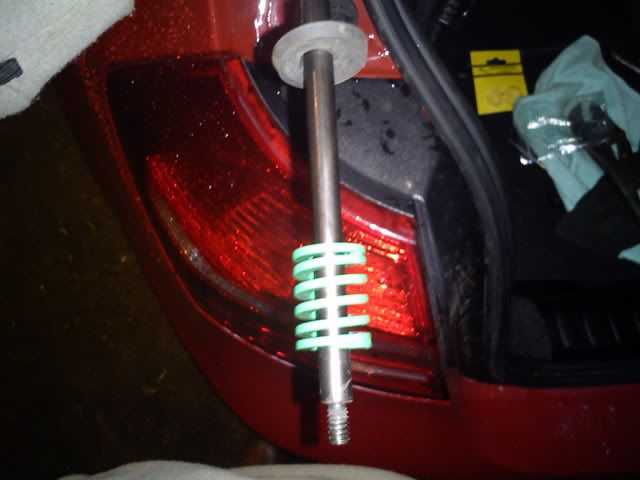

Slide on spring.

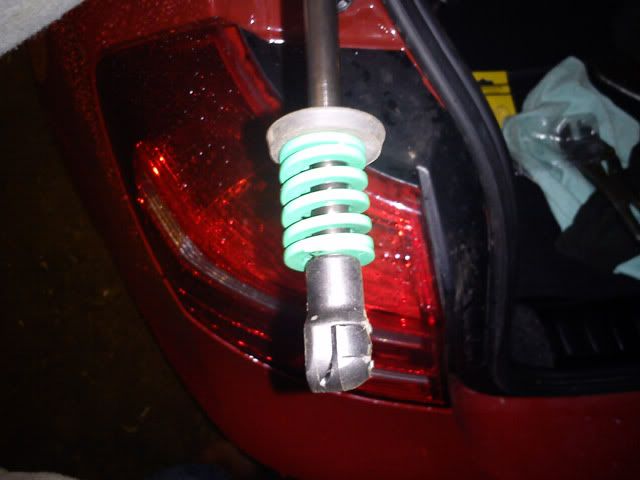

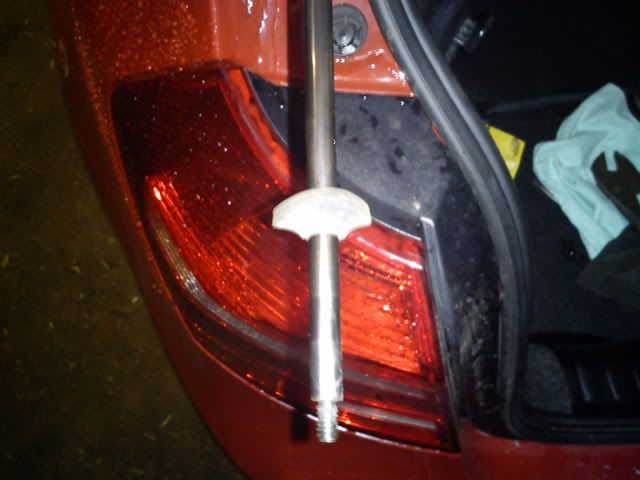

Refit head and pull washer and spring to the top.

Refit head to socket and replace the clip.

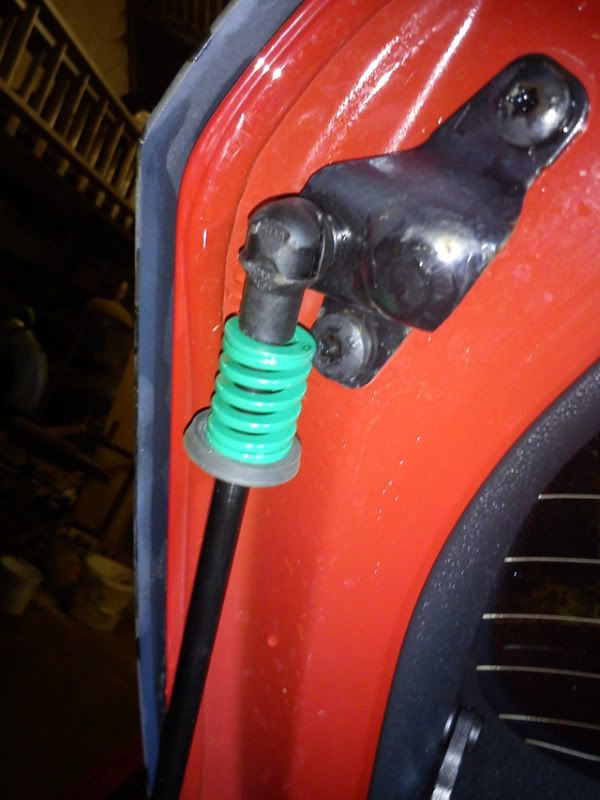

Stand back and push the button.

I'll probably take them off again and paint them black, maybe use a slightly smaller washer to make it look better.

User avatar
135guy
Knowledgeable Member
Knowledgeable Member
Posts: 120
Joined: Wed Apr 13, 2011 11:02 am

Re: Automatic Boot Spring Open

Postby 135guy » Tue Apr 26, 2011 5:56 pm

Will the same springs in "option 5" be fine for the boot to pop open in an M sport coupe or would it be too powerful and hard to close?
E92 M3 Silverstone II
N54 135i M Sport, Performance pedals. Alpine upgrade kit, Privacy Glass Pro Sat Nav........SOLD

User avatar
riske
Junior Member
Junior Member
Posts: 3
Joined: Thu Aug 18, 2011 7:44 am
Location: Kent

Re: Automatic Boot Spring Open

Postby riske » Mon Sep 12, 2011 8:54 am

As above? What springs will work on m sport coupe?
Black 09 M Sport 120d Coupe

User avatar
Alex N
Knowledgeable Member
Knowledgeable Member
Posts: 86
Joined: Fri Jun 03, 2011 12:57 pm
Location: Essex

Re: Automatic Boot Spring Open

Postby Alex N » Mon Sep 12, 2011 3:03 pm

Why they didn't design the boot to spring open when you press the keyfob button is beyond me! It is possibly the most annoying part of the ownership experience- when you have your hands full of shopping bags and have to wrestle the lid open or put the bags down to open the boot.
2007 116i ES, Titanium Silver

User avatar
space
Experienced Member
Experienced Member
Posts: 218
Joined: Thu Jul 21, 2011 6:58 pm
Location: Kent

Re: Automatic Boot Spring Open

Postby space » Wed Sep 14, 2011 12:23 am

Where do you buy these springs?

Baldyloxxx
Knowledgeable Member
Knowledgeable Member
Posts: 62
Joined: Wed Aug 17, 2011 10:24 pm
Location: Narnia

Re: Automatic Boot Spring Open

Postby Baldyloxxx » Fri Sep 23, 2011 2:57 pm

I echo the post above.

Where do you get these springs from and what exact dimentions are they?
Remember, theres no such thing as a stupid question..........

User avatar
sonicvanman
Too Much Time To Waste Member
Too Much Time To Waste Member
Posts: 5257
Joined: Mon Sep 13, 2010 9:28 pm
Location: warwickshire

Re: Automatic Boot Spring Open

Postby sonicvanman » Fri Sep 23, 2011 3:57 pm

I have thought about doing this mod but wasnt 100% on how to do it & where to get the parts & the correct parts from,

quality "how to" post, looks easy enough. thankx

But can any one post links to places we can buy the parts & for the different springs for half & full opening, so we know we're buying the rights parts.

cheers.

:chin: Or someone could buy the parts make a "how to" print it off put it together & sell it on ebay.
CLICK BELOW TO SEE MY CAR

StayPuft
Knowledgeable Member
Knowledgeable Member
Posts: 81
Joined: Thu Feb 17, 2011 1:24 pm
Location: Cardiff, Wales

Automatic Boot Spring Open

Postby StayPuft » Fri Sep 23, 2011 8:11 pm

sonicvanman wrote:I have thought about doing this mod but wasnt 100% on how to do it & where to get the parts & the correct parts from,

quality "how to" post, looks easy enough. thankx

But can any one post links to places we can buy the parts & for the different springs for half & full opening, so we know we're buying the rights parts.

cheers.

:chin: Or someone could buy the parts make a "how to" print it off put it together & sell it on ebay.


I'm also in the same boat....u think the word is lazy! :-)

Any help appreciated!

User avatar
sonicvanman
Too Much Time To Waste Member
Too Much Time To Waste Member
Posts: 5257
Joined: Mon Sep 13, 2010 9:28 pm
Location: warwickshire

Re: Automatic Boot Spring Open

Postby sonicvanman » Tue Sep 27, 2011 5:50 pm

so i look through the other posts with the info & links & ordered my springs from Bearingboys
http://www.bearingboys.co.uk/V20x25_Light_Load_Die_Spring-31026-p
& ordered the V20x25 light die spring as said on the post bellow
anit999 wrote:Image


so i've just fitted them & it only opens half way :?

could this be because my gas struts are worn as there 6 years old or i need a higher rigidity spring Or Anit999 lied?

im thinking i mite try the medium load springs B20x25mm @ rigidity 8.90 Or B20x32mm @ rigidity 7.00 as they should give i a bit more umf.
http://www.bearingboys.co.uk/B20x25_Medium_Load_Die_Spring-31087-p
CLICK BELOW TO SEE MY CAR

User avatar
verysideways
Too Much Time To Waste Member
Too Much Time To Waste Member
Posts: 2022
Joined: Tue Feb 12, 2008 8:51 am
Location: Cotswolds
Contact:

Re: Automatic Boot Spring Open

Postby verysideways » Tue Sep 27, 2011 6:13 pm

If it opens half way then it's not the springs - the springs only open it the first foot or so. After that it's all about the gas struts really.

'16 BMW F22 M235i (x2)
'13 BMW F20 M135i
http://petrolhead.tours

User avatar
sonicvanman
Too Much Time To Waste Member
Too Much Time To Waste Member
Posts: 5257
Joined: Mon Sep 13, 2010 9:28 pm
Location: warwickshire

Re: Automatic Boot Spring Open

Postby sonicvanman » Tue Sep 27, 2011 6:15 pm

verysideways wrote:If it opens half way then it's not the springs - the springs only open it the first foot or so. After that it's all about the gas struts really.


so i'll need new struts then? there only £13 each
CLICK BELOW TO SEE MY CAR

User avatar
verysideways
Too Much Time To Waste Member
Too Much Time To Waste Member
Posts: 2022
Joined: Tue Feb 12, 2008 8:51 am
Location: Cotswolds
Contact:

Re: Automatic Boot Spring Open

Postby verysideways » Tue Sep 27, 2011 6:19 pm

sonicvanman wrote:
verysideways wrote:If it opens half way then it's not the springs - the springs only open it the first foot or so. After that it's all about the gas struts really.

so i'll need new struts then? there only £13 each

Is that all? I should probably get a new pair myself then!

'16 BMW F22 M235i (x2)
'13 BMW F20 M135i
http://petrolhead.tours

User avatar
tahiblue
Knowledgeable Member
Knowledgeable Member
Posts: 135
Joined: Sun Mar 06, 2011 12:20 pm

Re: Automatic Boot Spring Open

Postby tahiblue » Tue Sep 27, 2011 7:19 pm

Read through this post for more info on varying rates of spring length/size/rating success.

viewtopic.php?f=20&t=18057

I bought my springs from bearing boys and the washers (3/4" flat tap washers) off amazon.

People have varying results with springs, but if you want it to really pop open I'd suggest going with a medium load 32mm spring (I do not take any responsibility if your car explodes as a result of fitting them).

User avatar
sonicvanman
Too Much Time To Waste Member
Too Much Time To Waste Member
Posts: 5257
Joined: Mon Sep 13, 2010 9:28 pm
Location: warwickshire

Re: Automatic Boot Spring Open

Postby sonicvanman » Thu Sep 29, 2011 6:19 pm

so job do, i had bought the correct springs & i need new gas struts as the old ones worn out & only opening half way.

so i brought 2x v20x25mm light load die springs @ £2.40 +vat each

from http://www.bearingboys.co.uk/V20x25_Light_Load_Die_Spring-31026-p

very esay to fit as above & works a treat.

CLICK BELOW TO SEE MY CAR

User avatar
MrTracey
Experienced Member
Experienced Member
Posts: 446
Joined: Wed Aug 24, 2011 9:25 pm
Location: Royal Berkshire (named after a Royal Berk)

Re: Automatic Boot Spring Open

Postby MrTracey » Thu Sep 29, 2011 10:59 pm

sonicvanman wrote:so job do, i had bought the correct springs & i need new gas struts as the old ones worn out & only opening half way.

so i brought 2x v20x25mm light load die springs @ £2.40 +vat each

from http://www.bearingboys.co.uk/V20x25_Light_Load_Die_Spring-31026-p

very esay to fit as above & works a treat.



Can't watch your you-tube clip - says it's "private" (and I'm logged in to my forum account).
M135i F21/// Mineral Grey/Coral Red/Black MP grilles/Auto/Adaptive/HK
